Balboa® - BP7 5.5 KW Control Box Bundle With SpaTouch Trapezoid Topside - 50-BP7-ST-55-K

Balboa® - BP7 5.5 KW Control Box Bundle With SpaTouch Trapezoid Topside - 50-BP7-ST-55-K

• This item has FREE SHIPPING
• 2 Year warranty
• The BP is the most reliable and widely used system in the industry.

• Supports all TP and SpaTouch™ topsides
  (LED, Color LCD and Touchscreens)

• Supports all BP ancillary products
  (ControlMySpa™, BBA™, CZ™ and Status Pro)





Balboa BP7 Control System Only

FEATURES:

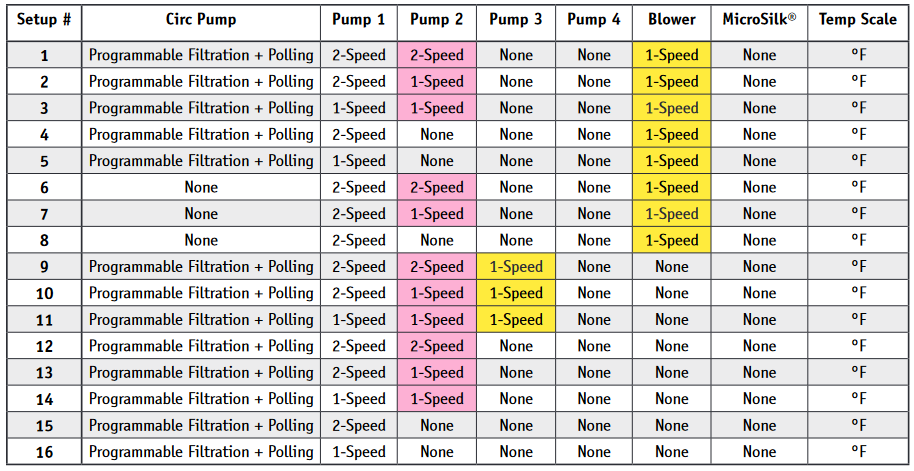

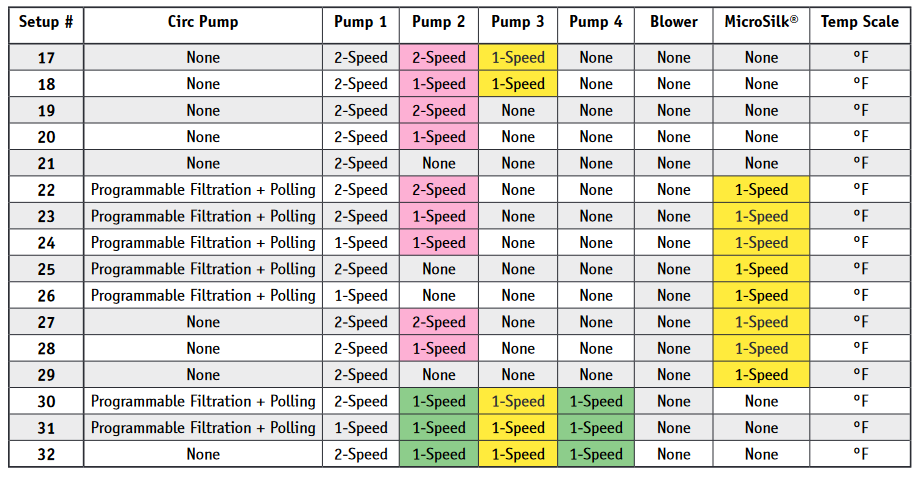

• 7 relays allow BP7 to operate in 32 different setups, which can power a spa with 1-4 pumps

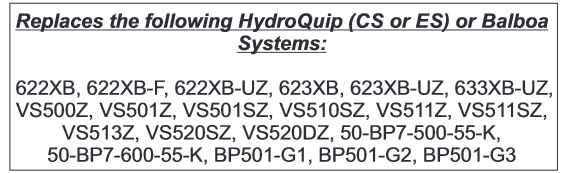

• BP7 can replace any Balboa BP System while using the existing topside that is already installed on the spa (some exceptions may apply)
• BP7 can replace any Balboa VS or EL System when you match it with any TP or SpaTouch topside panel (some exceptions may apply)
• BP7 can replace any Balboa or other brand's non-low flow system when you match it with amy TP or SpaTouch topside panel (some exceptions may apply)
• Supports - ControlMySpa, Balboa Bluetooth Audio, Chromozon3, and Status Pro
• Dimensions: 17"L x 4.75"W x 11.5"H

System (and any replacement board) is typically shipped in Setup 21

Both the Circ pump and Ozone can be converted to 115V, however they will be the same voltage after conversion. (Both 115V or both 230V.)

BP systems automatically detect 50Hz vs 60Hz.

Below are links to recommended circulation pumps for this system:

LX Pumps - Pump, Circ, LX WTC, 1/15hp, 115v/230v, 48Fr, 1.5", Pre 7/2011 - 48WTC0153C-I

Aqua-Flo - Circ-Master CMHP, 1/15 HP, 230V, 60HZ, 1SPD - 02093001-2010

Will Operate:

Circ + two 2spd pumps + Blower + Ozone

Circ + two 2spd pumps + 1spd P3 + Ozone

Circ + three 1spd pumps + Ozone

Circ + 2spd P1 + three 1spd pumps + Ozone

Circ + 2spd P1 + 1spd P2 + Blower + Ozone

2spd P1 + three 1spd pumps + Ozone
